1 min read

Release Notes: May 2025

Picture of Jeff Hausthor Jeff Hausthor : Published

Tech Tuesday Product QuickQnect Software AEC Industry update

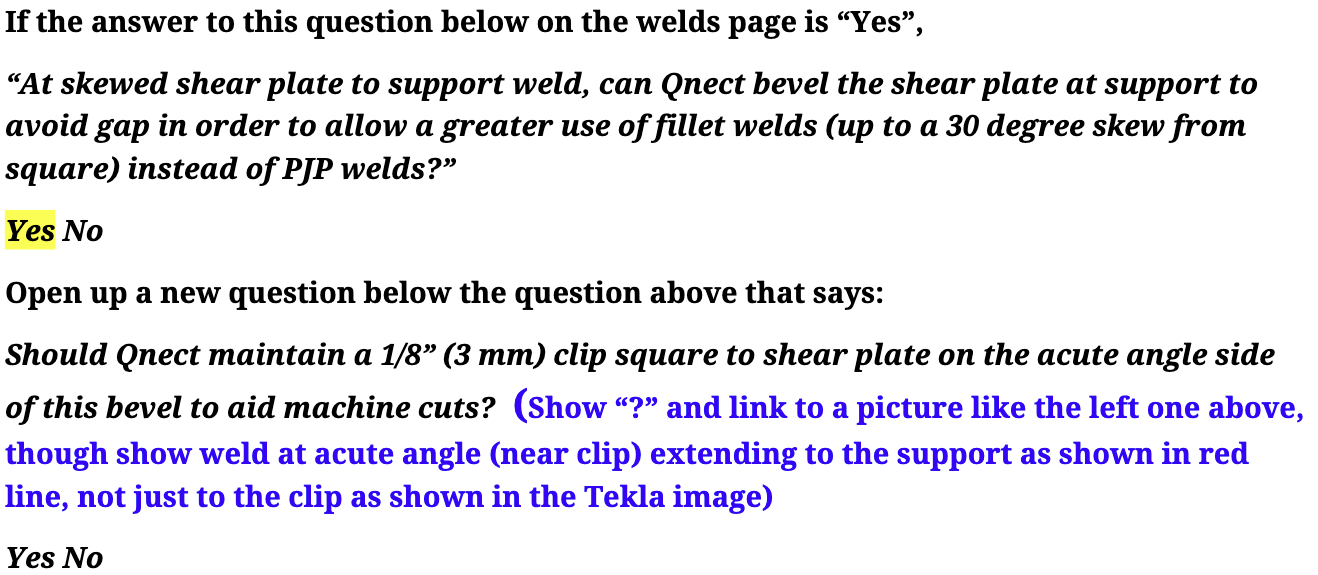

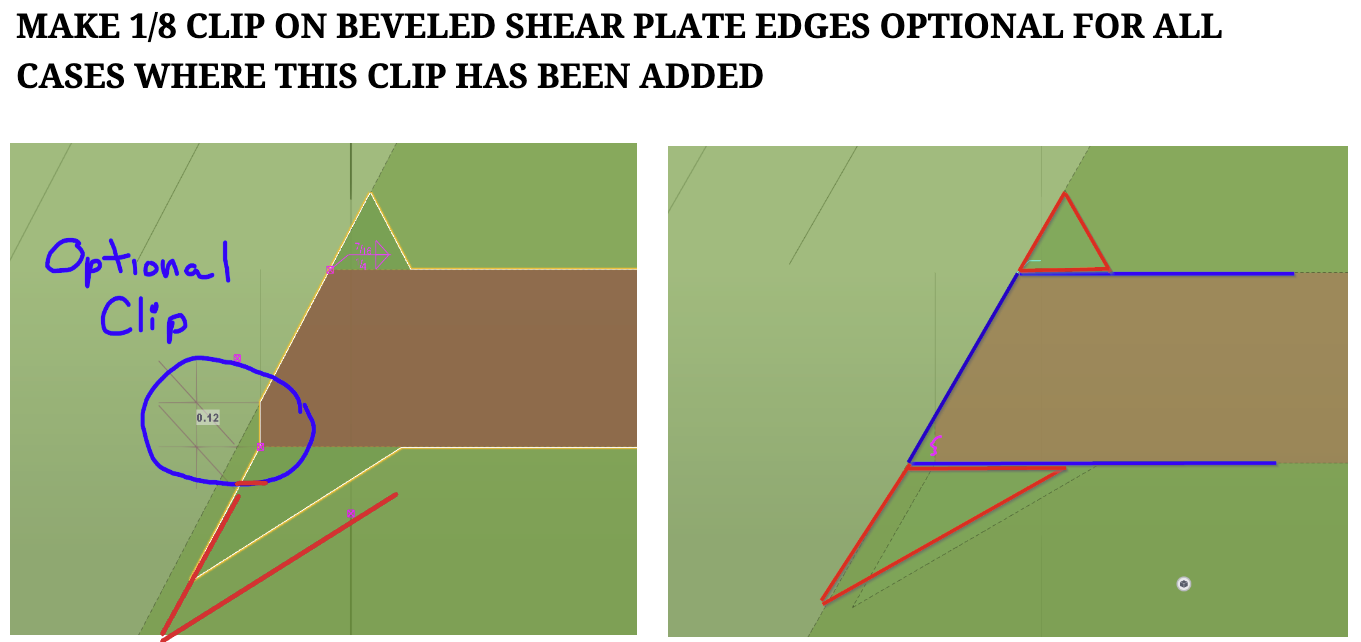

  • Make 1/8 clip on shear plate Optional
    • QNT-10038
      QNT-10038 II
  • Qnect for Tekla 2025 - The Tekla installation now works for 2025.
  • Fix vertical bolt spacing when optional iteration control is used
    • We had a bug with the bolt vertical spacing based in part on this question on the bolts page when 3.0 * bolt diameter is chosen.
      QNT-10018
    • Since our minimum vertical spacing is 3.0, this question should only affect the vertical spacing when the bolt diameter is > 1.0, ie  3* 1.0 = 3, no change, 3* 1.125 = 3.375 roundup to 3.5
  • HSS TO END PL - Remove extra welds in model.  This only impacted the model and the calcs used only the correct welds.
    • QNT-9798

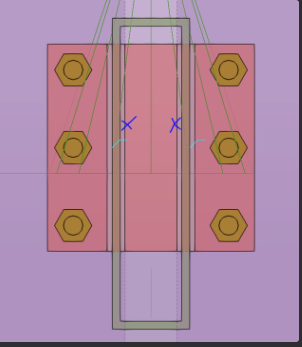

  • Can we add an option to cope the beam in HSS knifed connection instead of cutting flange flush?
    • This preference was not working correctly for DA connection and that has been resolved.
      QNT-8954

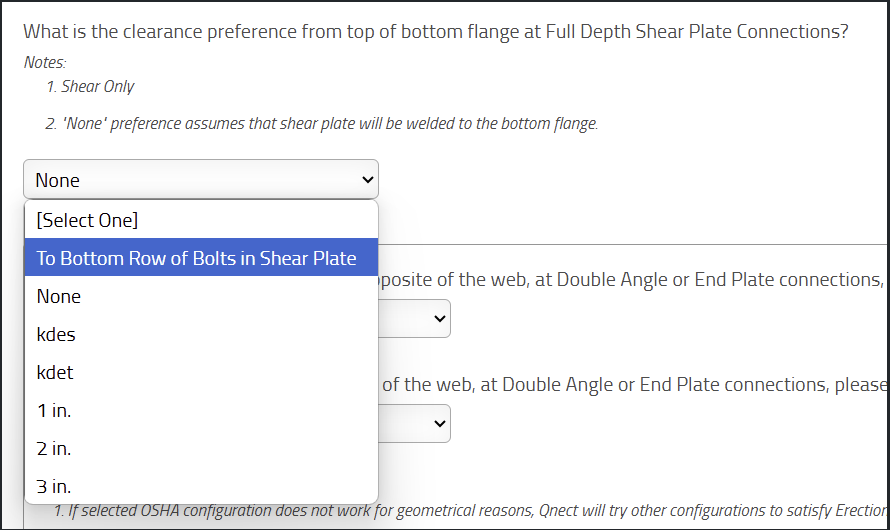

  • Partial Full Depth Shear Plate and extra cope at bottom flange
    • QNT-9959
