Release Notes: June 2025

Picture of Jeff Hausthor Jeff Hausthor : Published

Tech Tuesday Product QuickQnect Software AEC Industry update
  • Desktop: Need to compress or break up Qnect UDA tab data in Tekla
    • QNT-10061

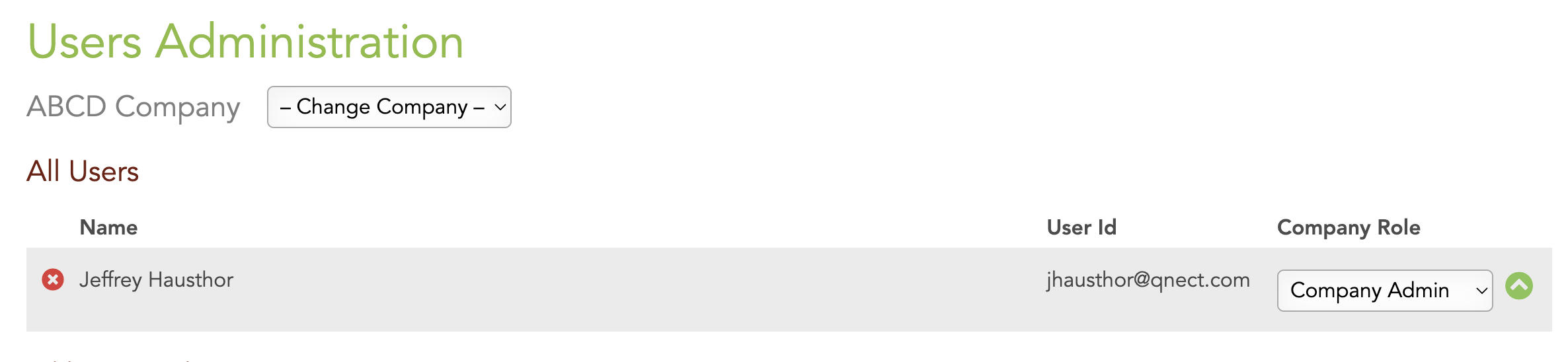

  • web-environment: add email address to Users Administration Web page
    • QNT-10027

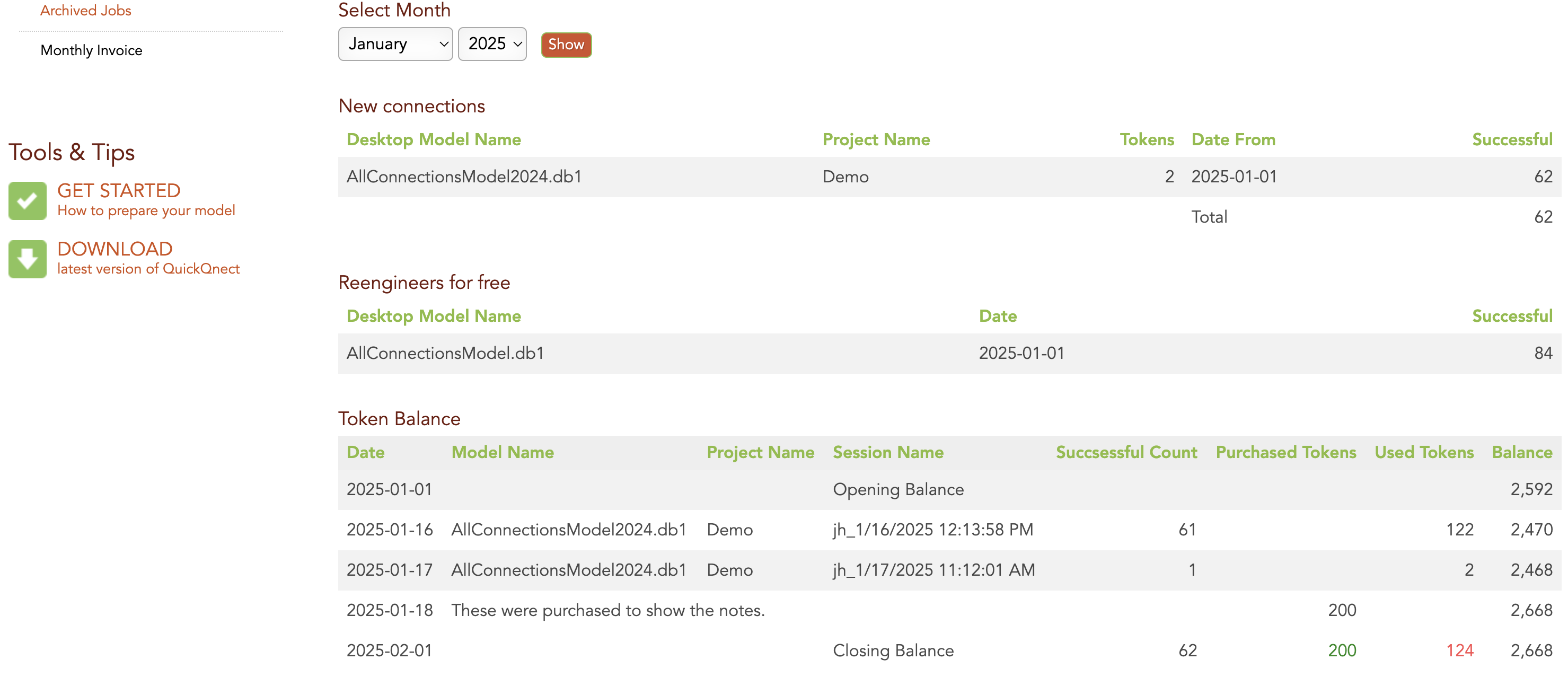

  • Show notes from tokens purchased on Monthly invoice
    • QNT-9982

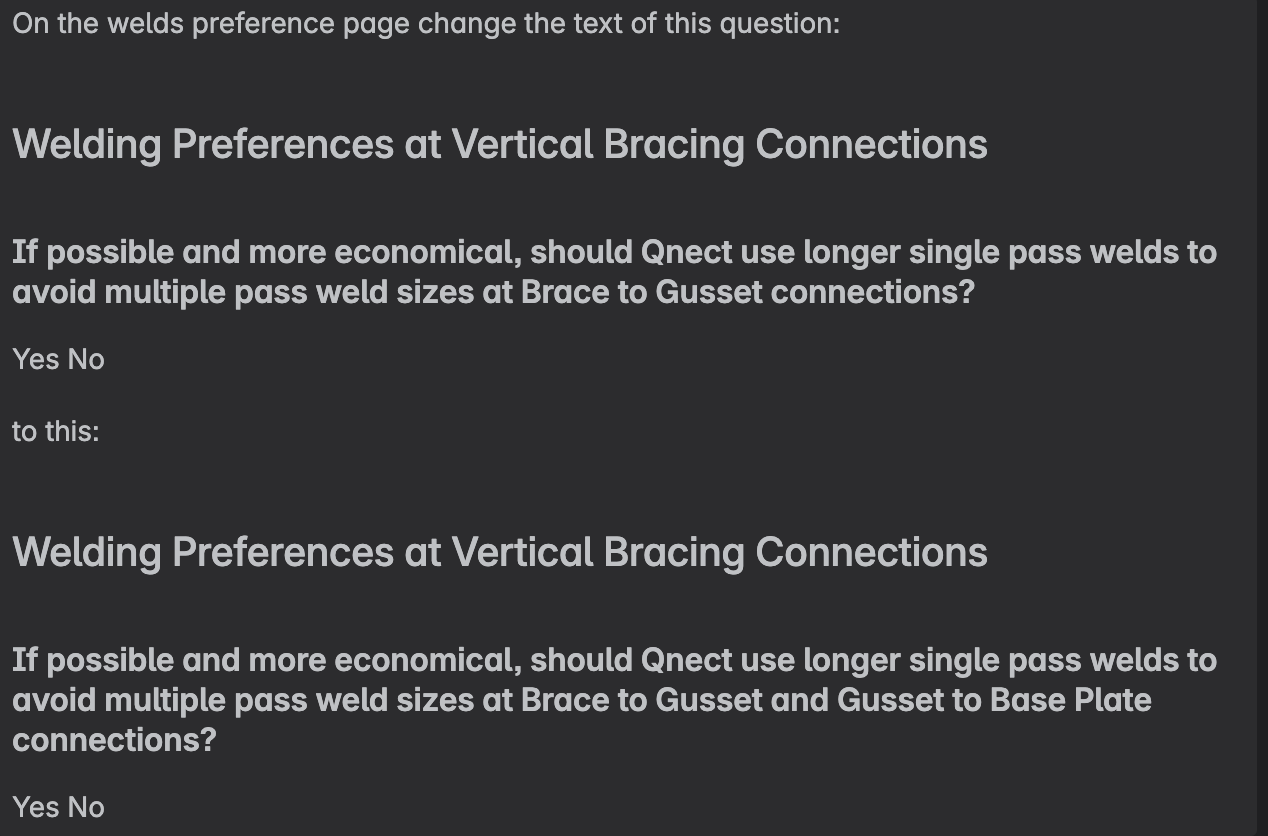

  • UPDATE WELD TO BASE PLATE QUESTION
    • QNT-10050
  • Pop-up warning when number of bolt sizes exceeds 3.  This includes general bolt preferences, vertical bracing and moment specific bolt sizes.

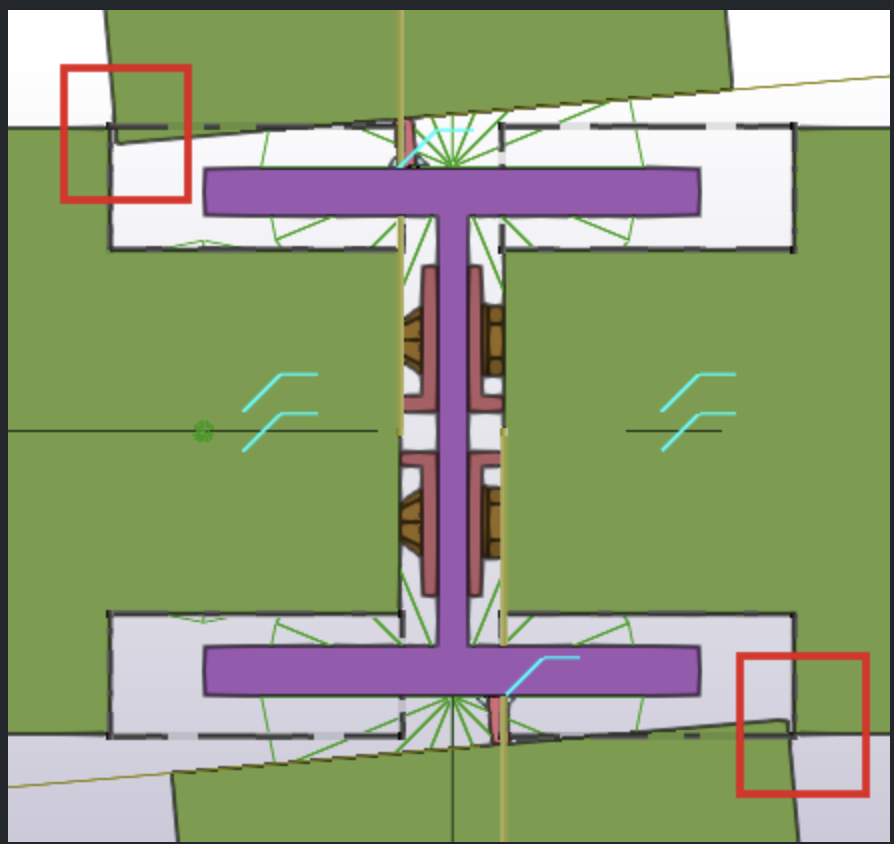

  • Update clash checks to ensure sufficient clearance between the flanges
    • QNT-9805

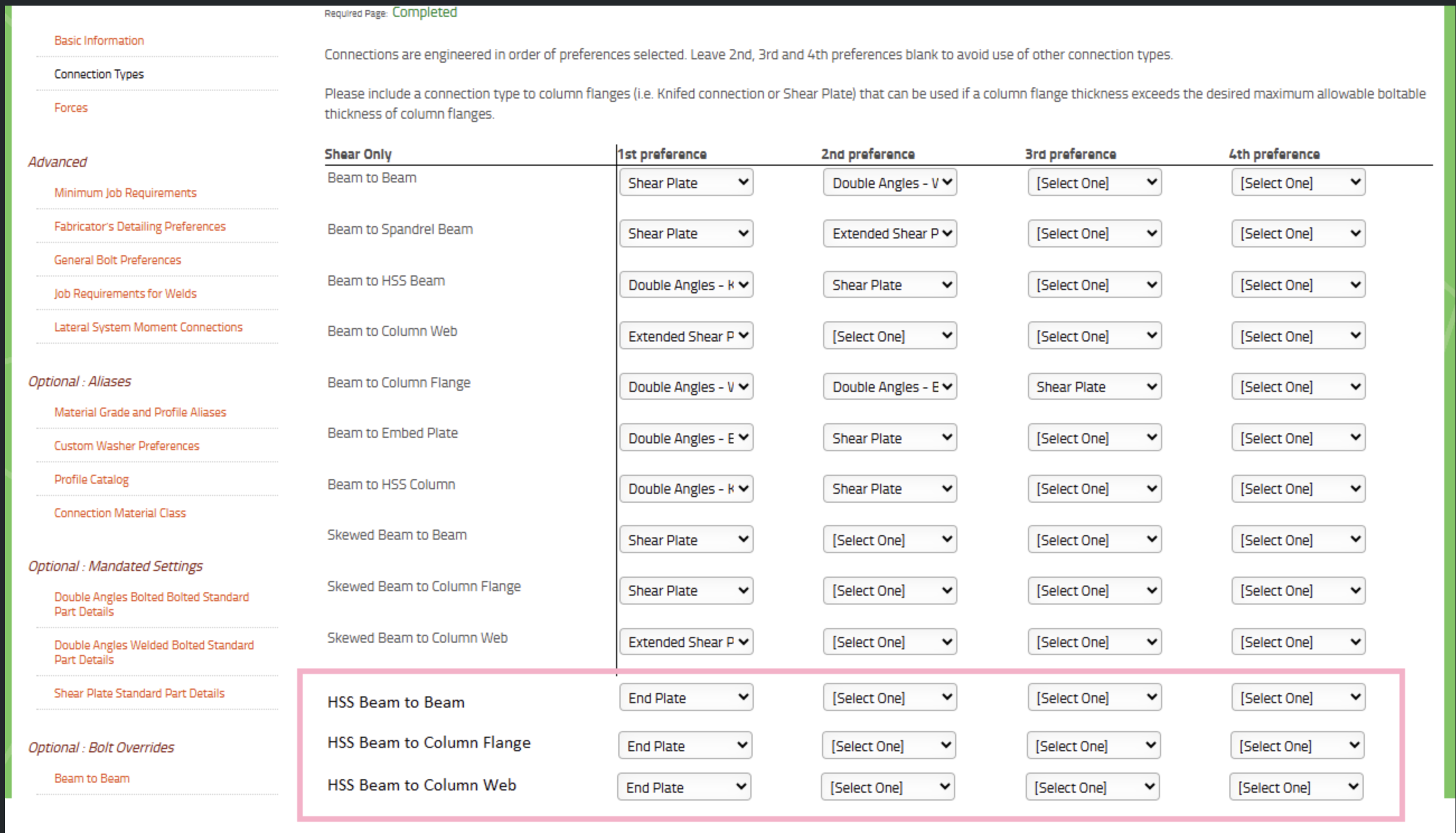

  • Add HSS filler beam connection type preference on the web pages
    • QNT-10074
  • Interaction between UDL force setting and short span force setting.

    • ADD NOTE IN BOLD BELOW:

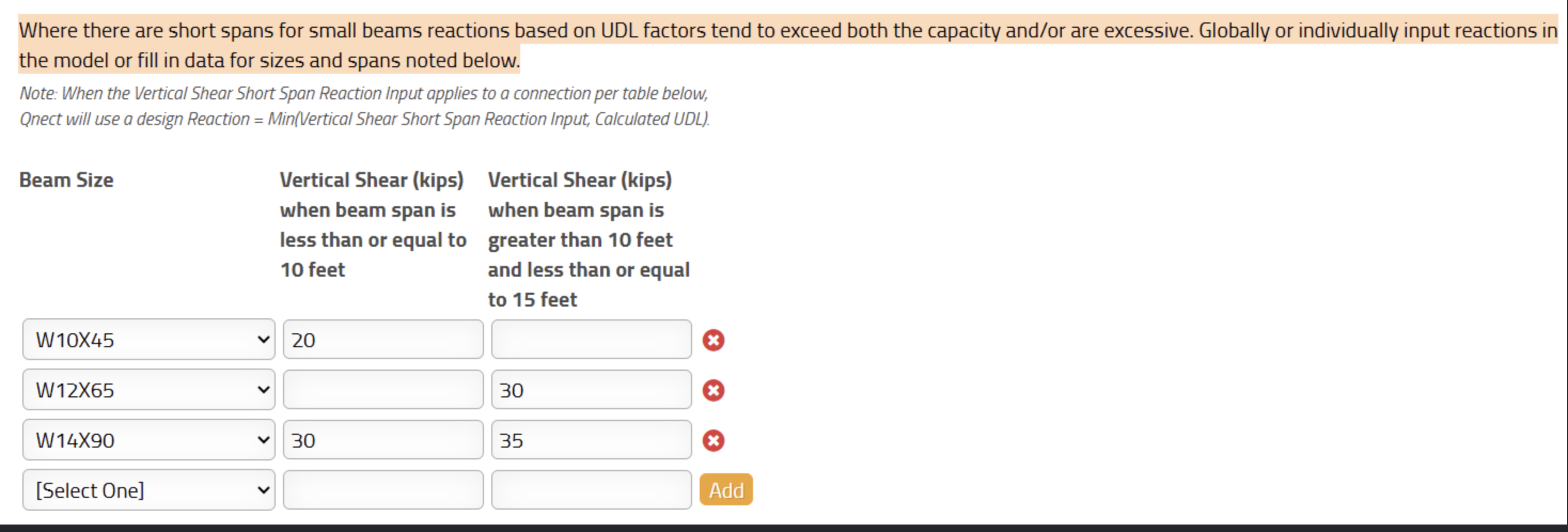

      Where there are short spans for small beams reactions based on UDL factors tend to exceed both the capacity and/or are excessive. Globally or individually input reactions in the model or fill in data for sizes and spans noted below. (Note: when the Vertical Shear Short Span Reaction Input applies to the connection per the table below, Qnect will use a design Reaction = min(Vertical Shear Short Span Reaction Input, Calculated UDL)

  •  web-environment: Make each Span field in Short Beam Span table optional
    • QNT-9967

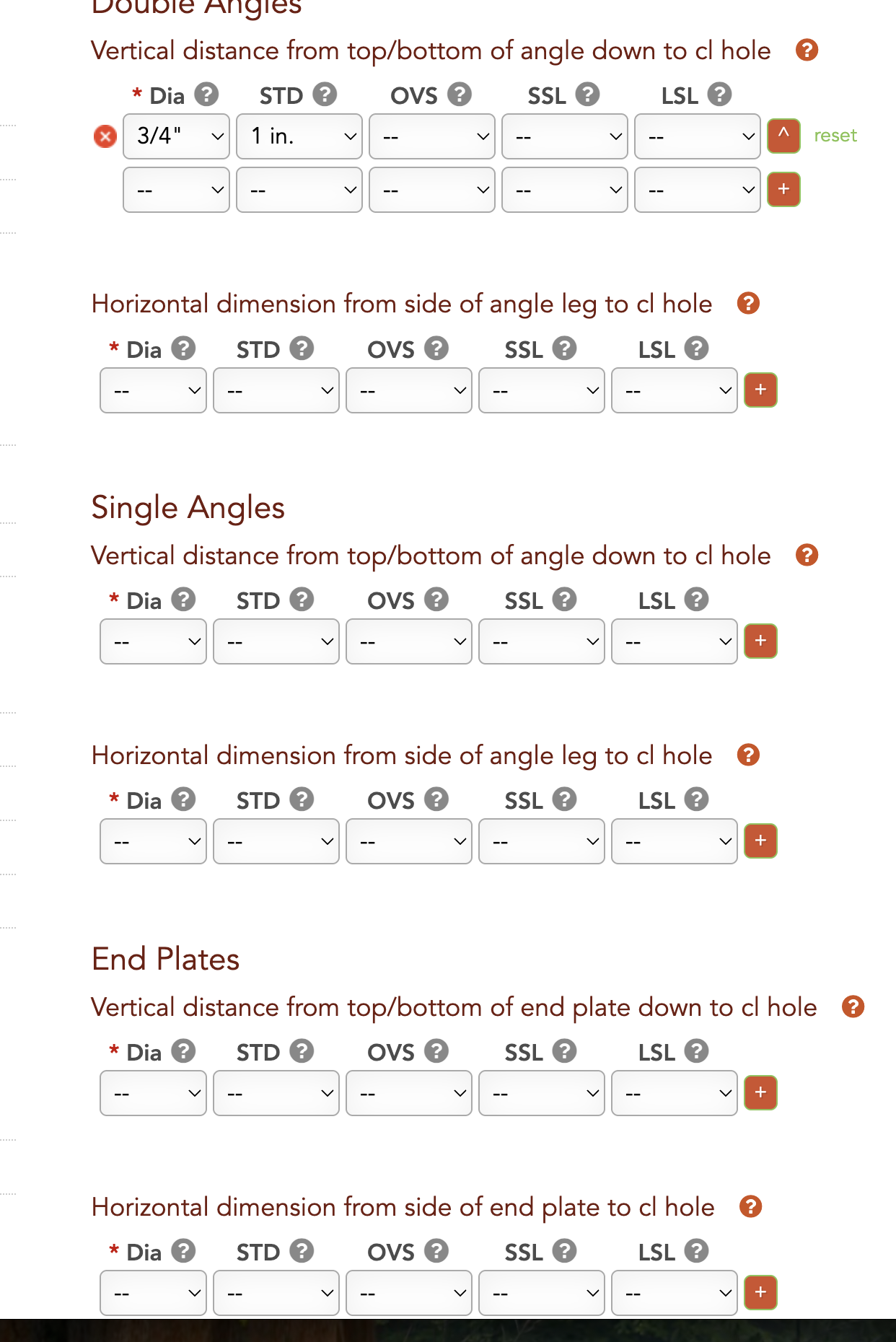

  • Update Custom Edge Distances pages - Need to add options for “Horizontal dimension from … “ at Double Angles, Single Angles and End Plate
    • QNT-9912
    • Double Angle and Single Angle picture
    • QNT-9912 II

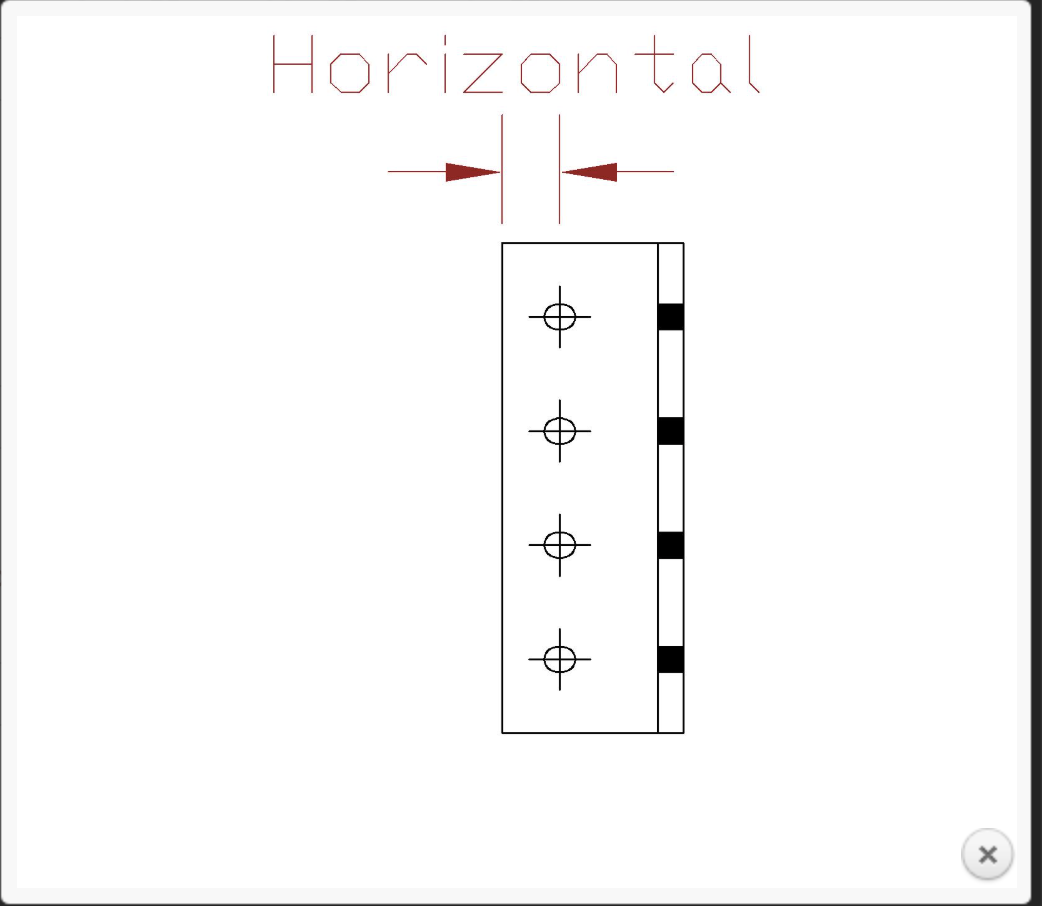

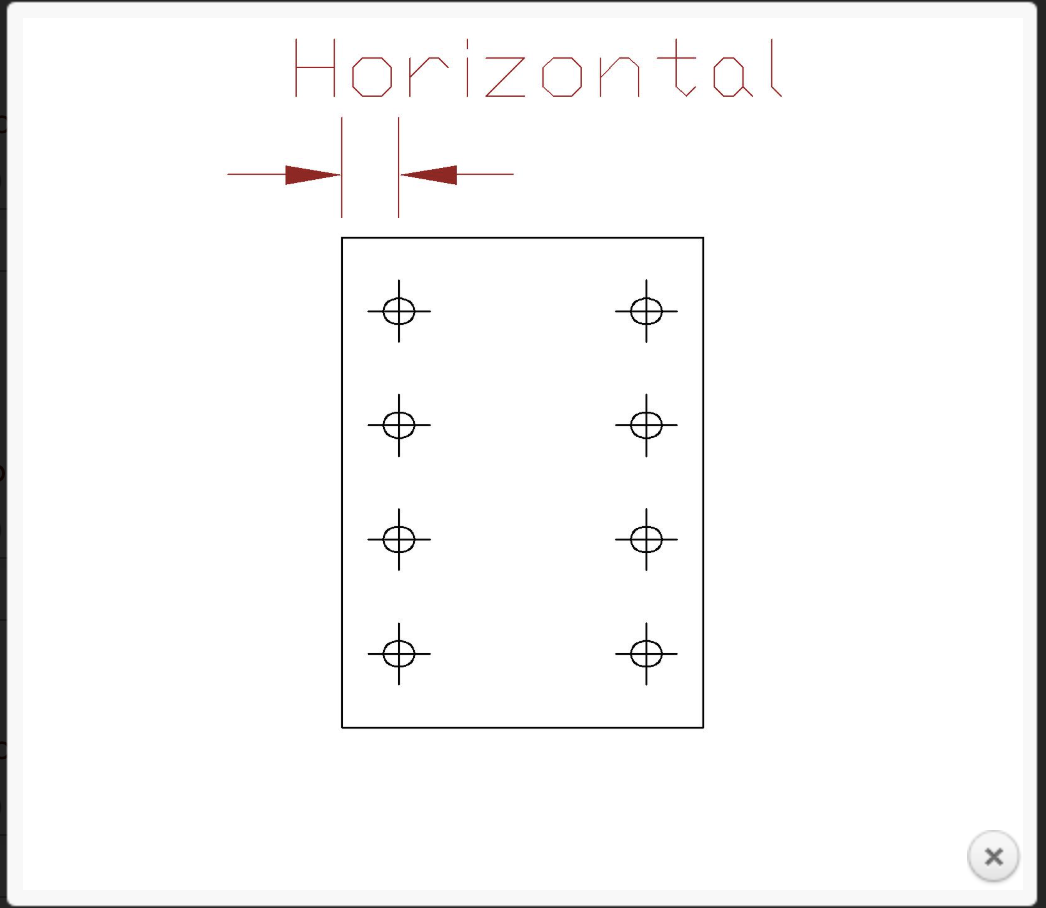

    • End plate picture
    • QNT-9912 III
  • Desktop Tekla: Track forces calculated when an issue is detected and store in End Conditions tab
